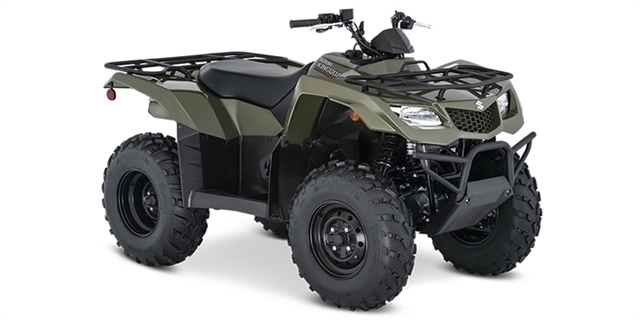

2022 Suzuki KingQuad 400FSi

Stock #22-547-0687

159 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2022 Suzuki KingQuad 400 FSi . I'm in the area and you can reach me at or on my phone at .




  • Status:
    New
  • Vehicle:
    2022 Suzuki KingQuad 400FSi
  • VIN:
    5SAAK4E39N7100687
  • Model Number:
    LT-F400FM2
  • Color:
    Green
  • Stock Number:
    22-547-0687
  • Title:
    Clear
  • Location:
    Leisure Time Powersports of Corry
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    7.5
  • Front Brake Diameter (mm):
    190
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Drum

DRIVE LINE

  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2
  • Rear Solid Axle:
    Yes

ENGINE

  • Bore (in):
    3.23
  • Bore (mm):
    82
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9
  • Cooling:
    Air / Oil
  • Cylinders:
    1
  • Displacement (cc):
    376
  • Displacement (ci):
    22.9
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.81
  • Stroke (mm):
    71.2
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    33.1
  • Seat Height (mm):
    840
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

SUSPENSION

  • Front Suspension Type:
    Independent Double A-Arm
  • Front Travel (in):
    6.7
  • Front Travel (mm):
    170.1
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    6.7
  • Rear Travel (mm):
    170.1

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    4.2
  • Fuel Capacity (l):
    16
  • Ground Clearance (in):
    9.8
  • Ground Clearance (mm):
    250
  • Height (in):
    48
  • Height (mm):
    1220
  • Length (ft):
    6.76
  • Length (ft/ft):
    6
  • Length (ft/in):
    9.1
  • Length (in):
    81.1
  • Length (mm):
    2060
  • Wet Weight (kg):
    279
  • Wet Weight (lbs):
    615
  • Wheelbase (in):
    50
  • Wheelbase (mm):
    1270
  • Width (in):
    45.1
  • Width (mm):
    1145

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Number Of Speeds:
    5
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Carlisle AT 25 X 8-12
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Carlisle AT 25 X 10-12
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Carlisle
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
